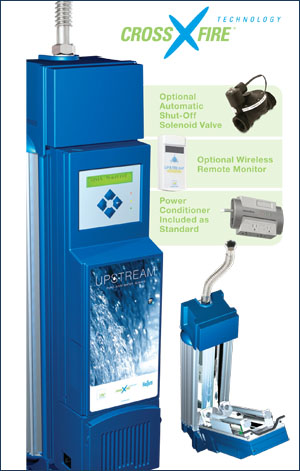

UV Pure Upstream^®

Ultraviolet Water Purification Systems

UV Pure Technologies’ Upstream® systems, with patented Crossfire Technology® are engineered to meet the same standards as NSF/ANSI 55 Class A systems, but are priced competitively with ordinary UV systems. Six models, for flow rates of 10, 15 and 30 GPM can treat water with UVT as low as 50%.

The Most Effective Water Purification

• Engineered to reduce e-coli, bacteria, cysts like cryptosporidium and giardia, legionella and most viruses to safe levels.
• Effective for the broadest range of pre-treatment water quality
• Elliptical reflectors eliminate UV shadowing

Crossfire Technology is Self-cleaning

• Automatic self-cleaning mechanism is engineered to eliminate quartz fouling, manual cleaning,quartz removal and risk of breakage

Quick and Easy Lamp Changes Annually

• No need to disassemble or drain systems to change lamps
• 9000 hour lamp life with lamp hour count down to end of life

Patented Smart Technology Engineered to Be Fail Safe and Risk-Free

• Dual UV sensors continuously monitor UV dose, lamp intensity,
  and net UV Transmittance (UVT)*
• Digital monitor, visual, and audible alarm notification
• On-board data logging and self-diagnostic trouble-shooting logic
• Optional automatic solenoid shut-off valve
• Optional wireless remote monitor

Engineered to be Virtually Maintenance Free

• Automatic Self-cleaning
• Simple and easy lamp changes
• Engineered to eliminate nuisance alarms
• Standard power conditioner protects gainst surges and brown-outs

Quick and Easy to Install

• 24 hour automatic initializing programming manages first time use so no installer wait time
• Small footprint and compact size
• No wasted space required for lamp removal
• Standard SS flexible hoses mean no hard piping required
• Optional automatic solenoid shut-off valve means by-pass piping is optional
• Wall mounting template included

* Ultraviolet Transmittance (UVT) is a measure of the percentage of UV light that may pass through the water.
